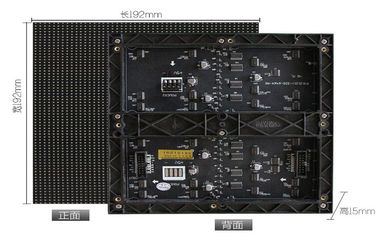

Fixed Installation Indoor LED Video Wall 3mm Pixel Pitch SMD 2020 150° Viewing Angle
Product Details:
| Place of Origin: | China |
| Brand Name: | TOPLED |
| Certification: | CE ROSH FCC |
| Model Number: | P1.25-P10 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Woden case/Carton box/Flight case |
| Delivery Time: | 10-25 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000 per month |
|
Detail Information |
|||
| Pixel Pitch(mm): | P1.25-P10 Available | LED Configuration: | 1R1G1B |
|---|---|---|---|
| Module Size(mm): | Customize | Module Resolution: | Customize Pixel |
| Grey Scale: | 14-16bit | Refresh Rate(HZ): | 1920/2880/3840HZ |
| Panel Size(mm): | Customize | Panel Resolution: | Customize |
| Panel Power Consumption(W): | 200-750W | ||
| Highlight: | led wall panels,led video wall display |
||
Product Description
Indoor Fixed install Video wall P3 Led Display Screen indoor led screen rental led media wall
High efficiency service-more convenient
1. Classical design and natural technic,reliable quality and great performance.
2. Seamless connecting tech.,screen flatness error <0.1mm.
3. Patented mask,eliminating the dark spots,improving consistency and viewing angle.
4. High contrast,ideal gray scale,presenting the most real pictures.
5. Supporting brightness and color correcting of the whole screen.
6. Ideal load of power and parameter setting,make screen under the best working condition,moreover,furthest slow down brightness and color reduction.
Technical Parameter
| Parameters | P3 |
| Pixel Pitch(mm) | 3.0 mm |
| Pixel Conguration | SMD 2020 |
| Pixel Matrix per Panel(dots) | 160 x 160 dots |
| Pixel Density(dots/m²) | 111,111 dots/m² |
| Cabinet Size(mm) | 480 x 480 x 63mm |
| Panel Dimension(W×H×D) | ( 18.9”×18.9”×2.5”) |
| Panel Material | Iron or Die-casting Aluminum |
| Panel Weight(kg/panel) | 5.6 kg/panel (12.3lb/panel ) |
| Color Depth(Bit) | 14 bit |
| Refresh Rate(Hz) | ≥2880Hz |
| Driver Method/scan | Scan 1/20 |
| Brightness(nits) | 1000nits |
| Horizontal Viewing Angle(°) | 150 ° |
| Vertical Viewing Angle(°) | 150 ° |
| AC Power Input(V) | AC110V~ 220V ±10% |
| AC Power Frequency(Hz) | 50 ~ 60 Hz |
| Max. Power(W/m²) | 520 W/m² |
| Avg. Power(W/m²) | 170 W/m² |
| Storage/Operating Humidity(RH ) | 10% ~ 90%RH |
| IP Rating(IP ) | IP43 |
| Lifetime Typical Value(Hrs) | 100,000 Hrs |
Lead Time:Delivery in 10-25 working days.
