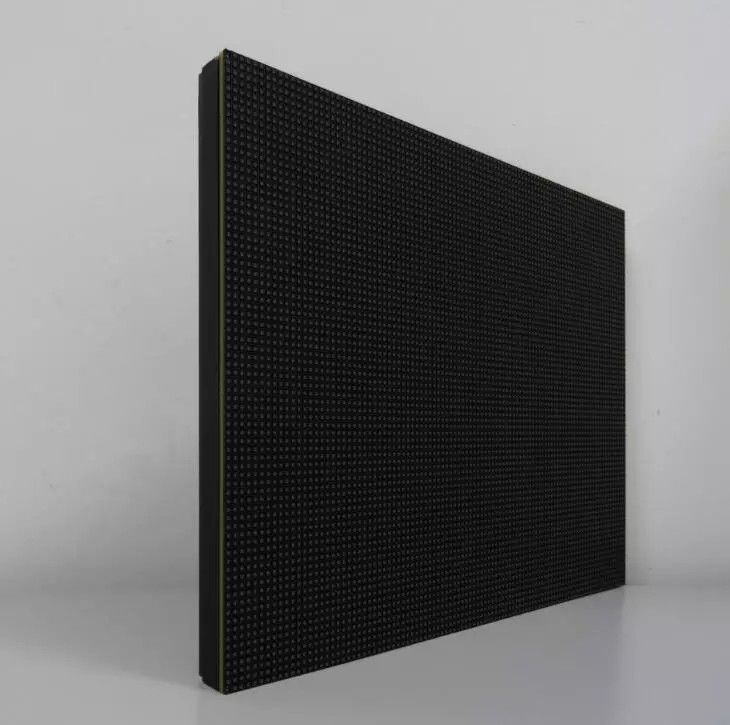

P2.5 Indoor LED Video Wall Panels 1R1G1B 14 - 16 Bit Grey Scale 96*72 Resolution
Product Details:
| Place of Origin: | China |
| Brand Name: | TOPLED |
| Certification: | CE ROSH FCC |
| Model Number: | p2.5 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Woden case/Carton box/Flight case |
| Delivery Time: | 10-25 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000 per month |
|
Detail Information |
|||
| Physical Density(dot/sqm): | 160000 | LED Configuration: | 1R1G1B |
|---|---|---|---|
| Scanning Mode: | 1/24 | Brightness(CD/sqm): | 400-1200CD |
| Grey Scale: | 14-16bit | Refresh Rate(HZ): | 1920/2880/3840HZ |
| Panel Size(mm): | Customize | Panel Power Consumption(W): | 200-750W |
| Highlight: | led wall panels,led video wall display |
||
Product Description
Seamless Video Wall Indoor LED Display screen panels
| Item | Parameters |
| Model | P2.5 |
| Pixel Pitch(mm) | 2.5 |
| Physical Density (dot/sqm) | 160,000 |
| LED Configuration | 1RGB |
| LED Type | SMD1515 |
| Module Size (mmxmm) | 240x180 |
| Module Resolution (PXxPX) | 96x72 |
| Scanning mode | 1/24 |
| Brightness(cd/sqm) | 400-1200 |
| Grey Scale | 16bit |
| Refresh Rate(Hz) | 3840Hz |
| Drive Mode | Constant Current Drive |
| Module Mask Structure | N/A |
| Horizontal Viewing Angle(Deg) | 140 |
| Vertical Viewing Angle(Deg) | 120 |
| Cabinet Resolution(PXxPX) | 192x216 |
| Module Power Consumption(w) | 23 |
| Cabinet Max Power Consumption(w) | 140 |
| Cabinet Average Power Consumption(w) | 40 |
| Cabinet Size(mmxmm) | 480x540 |
| Cabinet Weight(kg) | 8.6 |
| Cabinet Thickness(mm) | 85 |
| Cabinet Material | Die-casting Aluminum |
| Color(M) | 16.7 |
| Input Voltage | AC110V-220V +/-10% |
| Refresh Frame Frequency(Hz) | 50-60 |
| Protection Level | IP45 |
| Working Environment | Indoor |
| Working Temperature(℃) | -40°-+60° |
| Storage Humidity(RH) | 40%-60% |
| Life Span(H) | 100,000 |

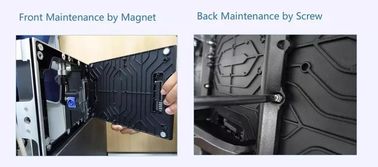

1) High precision die-casting aluminum cabinet design for 2K / 4K standard size screen, compatible with P1.875/ P1.935/ P2/ P2.4/ P2.5. Module magnet installation by front maintenance design.
2) Standard 240 x 180mm module size with 4: 3 scale, low current & heat, high contrast, high brightness, refresh 3840Hz, true 16bit gray level.
3) With pure black 1515 led, perfect color consistency,dot to dot matching 1920 x 1080/3840 x 2160 2K/4K resolution for the best display result.
4) Use TG (170 ℃) immersion golden S1000-2 substrate to ensure that no deformation of PCB board.
5) High quality thermal conductivity material for cabinet back, excellent ventilated design for heat dissipation, improving the stability and lifespan of screen.
6) 1515 High standard Pure black led, color contrast ratio reach to 9000:1, True 16bit gray scale, surface emitting with big view angle ensures the best color performance.
7) There is no reflection under strong light for pure black led, to get the best display result in different environments.
8) 100% new material plastic shell, Japanese original patent glue, long lifespan, failure rate <10PPM.
9) Pure black led, color contrast ratio reach to 9000:1, much higher than 5000:1 dark black led and 3000:1 normal black led.
10) Pure black led is able to show better detail and exquisite picture than dark black led and normal black led.
Lead Time:Delivery in 10-25 working days.
