P10 Large Size Led Advertising Board Screen Easy Setup 100000Hrs Life Span
Product Details:
| Place of Origin: | Guangdong |
| Brand Name: | TOPLED |
| Certification: | CE, ROHS, FCC, ISO9001, ISO14001 |
| Model Number: | Indoor p10 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case, flight case, honeycomb. |
| Delivery Time: | 15-20 Working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 SQM/Month |
|
Detail Information |
|||
| Brightness: | 1800cd/sqm | Cabinet Size: | 960*960mm |
|---|---|---|---|
| Life Span: | 100000 Hours | LED Chip: | Nichia + Silan |
| Pixels: | 10mm | Scan Method: | 1/4 |
| Highlight: | flexible led display,led wall panels |
||
Product Description

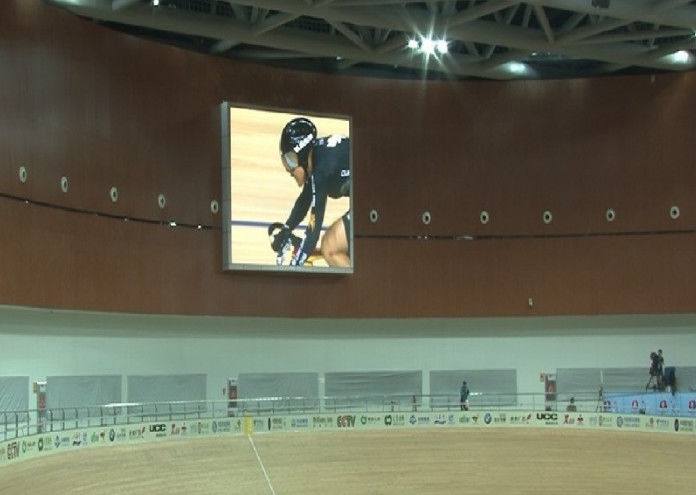

P10 Large Size Screen Indoor LED Video Wall for Sports Events Stadium
Characteristics
1. Gorgeous Picture: Non-reflective screen, which brings better viewing experience.
2. Perfect Image: Our products use special IC for LED which owns high refresh rate and achieves no shadows
3. Light Weight: The body uses aluminum profile stitching weighing 5-8kg, which is light and non- corrosive.
4. Standard Size: We use professional buckles and standard modular panels which can snap together easily.
5. Easy Setup: Back modules are made easier for connection.
6. Energy-saving: Our products get low energy cost and high efficiency.
Specification
| Name | P10 |
| Pixel Pitch(mm) | 10 |
| Physical Density | 10,000 |
| LED Configuration | 1RGB |
| LED type | SMD3528 |
| Module Size | 320×160 |
| Module Resolution | 32×16 |
| Module Max.Current | 4A |
| Driving Mode | Constant Current IC |
| Scanning Mode | 1/4 |
| Horizontal Viewing Angle | 140 |
| Vertical Viewing Angle | 140 |
| Brightness | 1500 |
| Grey Scale | 16bit |
| Refresh Rate | ≥3840 |
| Cabinet Resolution | 128×128 |
| Cabinet Size | 960×960 |
| Cabinet Weight(kg) | 32KG |
| Cabinet Thickness | 75mm |
| Cabinet Material | Iron/Aluminum |
| Color | >16.7 |
| Input Voltage | AC 110V~220V +/-10% |
| Frame Frequency | 50-60 |
| Protection Level | IP43 |
| Working Temperature(℃) | -40° -+65° |
| Storage Humidity Range(RH) | 10%~90% |
| Life Span(H) | 100,000 hours |
Module 320*160mm
