Full Color P5 Indoor LED Video Wall 320*160mm Module VGA High Contrast
Product Details:
| Place of Origin: | Guangdong |
| Brand Name: | TOPLED |
| Certification: | CE, ROHS, FCC, ISO9001, ISO14001 |
| Model Number: | Indoor p5 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case, flight case, honeycomb. |
| Delivery Time: | 15-20 Working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 SQM/Month |
|
Detail Information |
|||
| Pixels: | 5mm | Brightness: | 900cd/sqm |
|---|---|---|---|
| Display Function: | Video | Life Span: | 100000 Hours |
| Warranty: | 2 Years | Scan Mode: | 1/16 |
| Highlight: | led video wall display,led wall panels |
||
Product Description

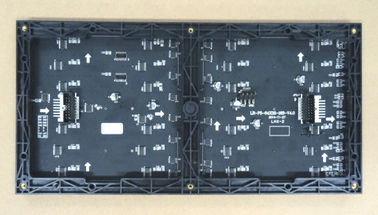

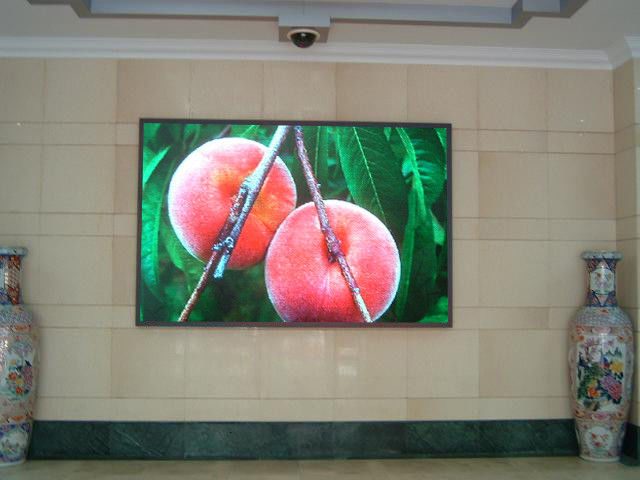

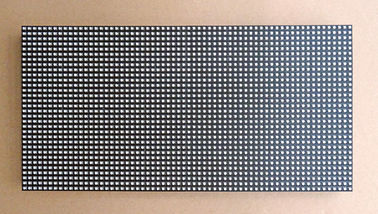

320*160mm Module VGA High Contrast Full Color P5 Indoor LED Video Wall
Our advantages are as following:
1. Excellent Project design solution
2. 10 professional engineers for installing and maintaining guidance
3. P1.5, P1.875 Small pixel pitch HD LED display factory for indoor and outdoor advertising
4. CE, ROHS, FCC, CCC, ISO9001, ISO14001 qualified Manufactory
5. Successfully finished 1100+ cases all over the world
6. Free project install solution design
Parameter
| Name | Parameter |
| Pixel Pitch(mm) | 5mm |
| Physical Density | 40,000 |
| LED Configuration | 1RGB |
| LED type | SMD2121 |
| Module Size | 320×160 |
| Module Resolution | 64×32 |
| Module Power Consumption | 20W |
| Driving Mode | Constant Current IC |
| Scanning Mode | 1/16 |
| Horizontal Viewing Angle | 140 |
| Vertical Viewing Angle | 140 |
| Brightness | 800-900 |
| Grey Scale | 16bit |
| Refresh Rate | ≥3840Hz |
| Cabinet Resolution | 128×128 |
| Cabinet Max Consumption | 160 |
| Cabinet Average Power Consumption | 50 |
| Cabinet Size | 640×640 |
| Cabinet Weight(kg) | 18kg |
| Cabinet Thickness | 75mm |
| Cabinet Material | Iron/Aluminum |
| Color | >16.7 |
| Input Voltage | AC 110V~220V +/-10% |
| Frame Frequency | ≥60 |
| Protection Level | IP43 |
| Working Temperature(℃) | -40° -+65° |
| Storage Humidity Range(RH) | 10%~90% |
| Life Span(H) |
100,000 hours |
Would you please advise your detail requests on:
1. the size of the screen(width and height)
2. the using environment
3. the installation type(fixed or rental)
4. the content for playing( text, picture or video)
5. other detail requirements
Suitable project solution would be offered.
