Iron Cabinet Materials LED Scoreboard Display P6 Open Or Closed Cabinet Type
Product Details:
| Place of Origin: | China (Mainland) |
| Brand Name: | Singheng |
| Certification: | CE RoHS UL Certifications |
| Model Number: | P5 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 square meter |
|---|---|
| Price: | USD+To be negotiated+square meter |
| Packaging Details: | Plywood case |
| Delivery Time: | About 16 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3000+square meter+per month |
|
Detail Information |
|||
| Application: | Score Display | Warranty: | 3 Years |
|---|---|---|---|
| Pixel Pitch: | 6 Mm | Usage: | Outdoor |
| LED Brand: | Epistar | Cabinet Type: | Open Or Closed |
| Weight: | 35KG/sqm | Brightness: | >6500cd/sqm |
| Viewing Distance: | >6m | Cabinet Material: | Iron |
| Highlight: | led football scoreboard,led display scoreboard |
||
Product Description

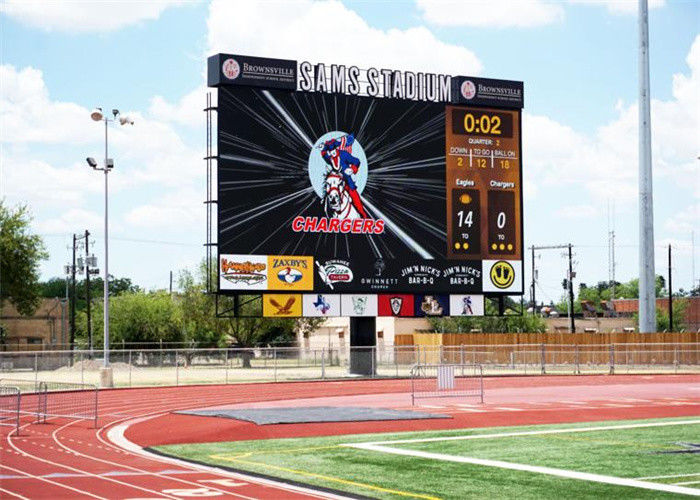

Led Scoreboard Video Large Full Color Arena Scoreboard P6 Led Screen Stadium
- Technical parameter of P6 Led Screen Stadium
| Pixel Pitch | 6 mm |
| Pixel Density | 27777 dots/sqm |
| Pixel Configuration | 1R1G1B SMD3535 |
| Module Size | 192*192 mm |
| LED brand | EPISTAR |
| Cabinet type | open or closed |
| Protection | front:IP65 |
| Unit cabinet dimension | 768mm×1152mm×95mm |
| Module Resolution | 32*32 dots |
| Cabinet Resolution | 128*192 dots |
| Weight | 35KG |
| Cabinet Material | Iron |
| Viewing Distance | ≥6 m |
| Viewing Angle (Horizontal Axis) | 140° |
| Viewing Angle (Vertical Axis) | 140° |
| Refresh Rate | >1920Hz |
| Grey Scale | 65536 |
| Brightness | ≥6500cd/sqm |
| Max Power Consumption | 850 w/sqm |
| Average Power Consumption | 370 w/sqm |
Scoring & Timing Solution
This is a general solution for LED display in stadium which has the functions of scoring, timing and advertising notification, the information of referees and teams. It is an ideal choice for most of stadiums.
1. System Chart
1.1 System description:
1) One or two LED screens are equipped for one court, controlled by two computers to display scoreboard, live video and advertisement.
2) Ultra score software is installed on the computer to accomplish the functions of event arrangement, scoring and timing, players and referees’ information and advertisement.
3) The score console is equipped for one court, connected to PC running Ultra score software by wire or via WIFI, working as scoring and timing terminal special for referees’ operation.
4) Match timer: Hanged on the court, display the match time synchronous with scoring system.
1.2 Standalone Edition:
1) Match management, Scoring, and Media display functions, all in one installed on a PC. Referee must do operation on the PC for display directly.
2) It is suitable for the stadium where has just one screen, which doesn't have strict needs of the scoring and timing accuracy.
1.3 Network Standard Edition:
1) Score terminal and media player functions can be installed on 2 PCs respectively. So that one independent PC can be setup on the courtside special for referee’s operation, the other PC running as media player to manage the LED display.
2) It is suitable for the stadium where has one screen, needs to do the scoring and timing on the courtside.
1.4 Network Professional Edition:
1) Except the function of score terminal, 1-3 media players can be equipped on PCs separately, in order to display different contents on several LED screens.
2) It is suitable for the stadium where has more than 2 screens where referee need to do scoring on the courtside and LED screens need to display different contents separately.
(For example, one basketball scoreboard is for scoreboard and another is for advertising or player info)
2. Features
1. Scoring functions: Include operation and display of teams and players’ point, foul and substitutions.
2. Timing functions: Include operation and display of game time, pause, break time, count down time and system time.
3. Convenient operation feeling: Referees can do operation on a special score console as well as by using shortcuts on the keyboard.
4. Powerful media player: Kinds of media formats are supported. It is easy to switch between the scoreboard and video.
5. Notification: Rolling to display short notice on the screen which allows to set the speed, colors, fonts freely.
6. Customization: All contents on the scoreboard including fonts, color and layout can be modified to meet clients' needs.
7. Self-adaptation: With easy configuration,score information can be displayed on kinds of LED and LCD screen by using this system which can adjust the layout to meet any sizes of screen.
- FAQ
Q1: To order a display, what information should l offer you?
A: You should provide width and height of the display, the main usage, the viewing distance, the scene photo and special requirements, then I can provide you a quotation. Sometimes you should also provide information such as geographical location, local climate.
Q2: How to install?
A: Free of charge to provide detailed steel structure drawings and installation guidance, wiring diagram and free remote debugging .We can also send our engineers to the site to guide the installation.
Q3: Is it OK to print my LOGO on your product?
A: Yes.We support OEM and ODM service.
Q4: How long is the transportation time?
A: Shipping:20-30 days.Airlift:3-7 days.
Q5: How about your quality?
A: The quality of our display is excellent. We use the materials of high quality suppliers, strictly control the production process. and pass the multiple quality inspection to ensure every product is qualified.
