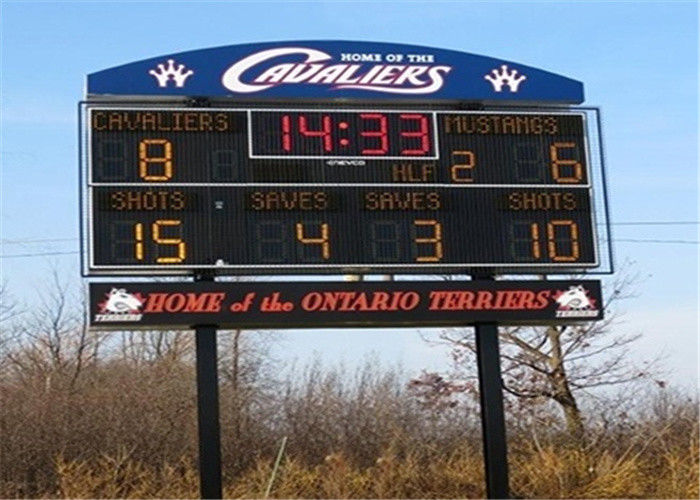

Arena Football Electronic Sports Scoreboard , Led Display Scoreboard SMD2727 Lamp
Product Details:
| Place of Origin: | China (Mainland) |
| Brand Name: | Singheng |
| Certification: | CE RoHS UL Certifications |
| Model Number: | P5 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 square meter |
|---|---|
| Price: | USD+To be negotiated+square meter |
| Packaging Details: | Plywood case |
| Delivery Time: | About 16 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3000+square meter+per month |
|
Detail Information |
|||
| Application: | Score Display | Warranty: | 3 Years |
|---|---|---|---|
| Pixel Pitch: | 5 Mm | Color Scale: | 65536 |
| View Angle(H/V): | 140/120 Degree | Brightness: | ≥6500cd/sqm. |
| Max Power Consumption: | 900w/sqm | Average Power Consumption: | 300w/sqm |
| Drive Mode: | Constant Current Drive | LED Lamp Type: | SMD2727 |
| Highlight: | led football scoreboard,led electronic scoreboard |
||
Product Description
Large Arena Football Scoreboard P5 Waterproof Stadium Scoreboard Led Display
- Technical parameter of P5 Waterproof Stadium Scoreboard
| Pixel Pitch | 5mm | |||||||||
| Pixel density | 40000 Pixels/sqm | |||||||||
| Module size(W*H) | 320W(mm) | 160 H(mm) | ||||||||
| Module pixels(W*H) | 64 Pixels(W) | 64 Pixels(H) | ||||||||
| Pixel configuration | 1Red 1Green 1Blue | |||||||||
| Drive mode | constant current driving 1/8 scan | |||||||||
| LED lamp type | SMD2727 | |||||||||
| Cabinet size(W*H*D) | 960 W(mm) | 960 H(mm) | ( Optional ) | |||||||
| Cabinet resolution | 192 Pixels(W) | 192 Pixels(H) | ||||||||
| Color scale | 65,536 degree | |||||||||
| View angle(H/V) | 120/120 degree | |||||||||
| Brightness (White balance) | ≥6500cd/sqm. | |||||||||
| Power consumption(one cabinet) | Max:900W/sqm. Average:300W/sqm. | |||||||||
| Operating Voltage | AC100V±10% or 220V ±10%; 50---60HZ | |||||||||
| Net weight | 35Kg/sqm | |||||||||
| Operating temperature | -20°C~+50°C (Customized power supply:-45°C~+60°C) | |||||||||
| Operating humidity | 10%~95%RH | |||||||||
| Life time | ≥100,000hours | |||||||||
| MTBF | 5,000 hours | |||||||||
| Whole Display Flatness | ≤0.3mm Juncture | |||||||||
| Frame frequency | >60 Hz/s | |||||||||
| Refresh rate | ≥1920Hz /s | |||||||||
| Control distance | 100m (without repeater), single mode fiber:20km, multi mode fiber: 500m | |||||||||
| Power | 110V/220V±15% 50~60Hz | |||||||||
| LED control system | LINSN,Dbstar,Nova-star,ZDEC,Colorlight is selectable | |||||||||
| Operating system | Windows 2000 / Windows XP / Windows 7 | |||||||||
| Protections for outdoor display | IP65 | |||||||||
| Maintenance way | Rear Access | |||||||||
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI | |||||||||
Scoring & Timing Solution
This is a general solution for LED display in stadium which has the functions of scoring, timing and advertising notification, the information of referees and teams. It is an ideal choice for most of stadiums.
1. System Chart
1.1 System description:
1) One or two LED screens are equipped for one court, controlled by two computers to display scoreboard, live video and advertisement.
2) Ultra score software is installed on the computer to accomplish the functions of event arrangement, scoring and timing, players and referees’ information and advertisement.
3) The score console is equipped for one court, connected to PC running Ultra score software by wire or via WIFI, working as scoring and timing terminal special for referees’ operation.
4) Match timer: Hanged on the court, display the match time synchronous with scoring system.
1.2 Standalone Edition:
1) Match management, Scoring, and Media display functions, all in one installed on a PC. Referee must do operation on the PC for display directly.
2) It is suitable for the stadium where has just one screen, which doesn't have strict needs of the scoring and timing accuracy.
2. Features
1. The commercial advertisements of LED screen add to the match's scene, and the perfect picture quality and sound effects make the scene more competitive and shocking.
2. Point-by-point correction technology for every pixel, every module, every box and the entire screen, so that the screen presents a perfect white balance effect.
3. The LED screen use high-efficiency optical fiber transmission system effectively reduces the signal delay caused by the long transmission distance in the stadium, ensuring the consistency of picture playback.
4. Professional scoreboard display: Scoring and timing operation, layout of scoreboard can meet international game rules.
5. Match management: Information of match, team, team members and coaches can be saved in advance. And referee’s scoring operation during the match can be recorded and output.
6. Scoring functions: Include operation and display of teams and players’ point, foul and substitutions.
7. Timing functions: Include operation and display of game time, pause, break time, count down time and system time.
8. Convenient operation feeling: Referees can do operation on a special score console as well as by using shortcuts on the keyboard.
- FAQ
Q1: What pixel pitch should I choose on my display?
A: Using the PX screen, it is determined mainly by the viewing distance, the size of the screen, the desired effect and the customer budget. It is generally believed that P5 is suitable for watching outside 5 meters. P10 is suitable for watching outside 10 meters. Of course, this data is not very accurate, and the customer can just refer to it. It also depends on the size of the screen, generally it is considered that more than 100 thousand pixels for a full color display then have a standard effect.
Q2: What pixel pitch should I choose on my display?
A: Using the PX screen, it is determined mainly by the viewing distance, the size of the screen, the desired effect and the customer budget. It is generally believed that P5 is suitable for watching outside 5 meters. P10 is suitable for watching outside 10 meters. Of course, this data is not very accurate, and the customer can just refer to it. It also depends on the size of the screen, generally it is considered that more than 100 thousand pixels for a full color display then have a standard effect.
Q3: To order a display, what information should l offer you?
A: You should provide width and height of the display, the main usage, the viewing distance, the scene photo and special requirements, then I can provide you a quotation. Sometimes you should also provide information such as geographical location, local climate.
Q4: Can I order a sample?
A: Yes.We welcome customers to order sample to check the quality and service.
Q5: What about the warranty?
A: Three year warranty.
