High Performance P3.91 Led Stage Display Screen Amazing Photographic Effects
Product Details:
| Place of Origin: | China (Mainland) |
| Brand Name: | TOPLED |
| Certification: | CE FCC ROHS |
| Model Number: | P3.91 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Fight case or Standard wooden box |
| Delivery Time: | 10-15 working days after got deposit |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Usage: | Indoor | Cabinet Size: | 500*500mm |
|---|---|---|---|
| Material: | Die Casting Aluminum | Module Size: | 250*250mm |
| Brightness: | 1000nits | Certification: | CE,RoHS,FCC,CCC |
| Highlight: | stage led display,led stage curtain screen |
||
Product Description

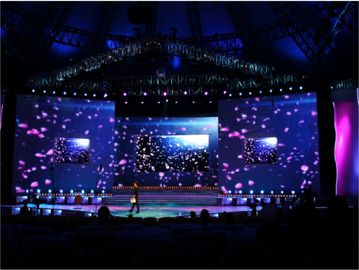

Indoor rental led screen p3.91 led display stage performance
Features
1. Standard dimension module size 250mm×250mm,cabine size 500mm×500mm,Compatible model PH3.91/PH4.81/PH5.95 and other pixel Pitch standard size cabinet design.
2. High-precision die-cast aluminum cabinet, seamless unit box,Perfect solution for both outdoor using
3. Light and strong cabinet design with quick locate handle lock canbe quickly and easily assembled in various ways, it can be used ina variety of occasions ,to meet different customer requirement for a variety of applications.
4. 140-degree viewing angle assure the screen has wider view area, meet various rent environment and requirements.
5. Sophisticated materials for led lamp and IC, uniform screen, real andnatural color, high grey scale, high refresh rate to ensure the amazing photographic effects.
Specification:
| Pixel Pitch | 3.91mm |
| Pixel Density | 65536dots/sq.m |
| Color Configuration | 1R1G1B |
| LED Package | SMD2121 |
| Display | Full Color |
| Module Size | 250mmx 250mm |
| Module Resolution | 64dots x 64dots |
| Drive Duty | 1/16 Scan |
| Standard Cabinet Size | 500*500mm |
| Cabinet Weight | 6kg |
| Led Chip | Nationstar / Kinglight |
| Power | DC 5V, AC110V-220V |
| Brightness | ≥1000 cd/sqm |
| Viewing Distance | 3.91M |
| Viewing Angle | H: 140°; V:140° |
| Refresh Rate | >3840HZ, adjustable by software |
| Power Input | AC110V/ 220V ±10%, 50HZ |
| Max Power Consumption | 100W/cabinet |
| Ave. Power Consumption | 30W/cabinet |
| Temperature | -40℃~+60℃ |
| MTBF | >10,000 Hours |
| Life Span | >100,000 Hours |
| Operating Humidity | 10%~90% RH |
| Control Method | Synchronous, Asynchronous, 3G,WIFI,USB |
| Control PC | With DVI Graphic card |
| Certificate | CE, RoHS,ISO9001 |

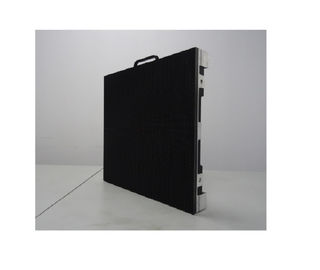

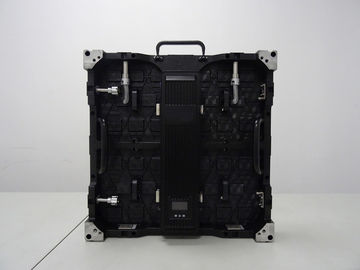

Die-casting Aluminum 500×500mm
