P4.81 Rental Stage LED Screen 2200cd/sqm High Brightness For Advertising

P4.81 Rental Stage LED Screen 2200cd/sqm High Brightness For Advertising

Product Details:

Place of Origin: Guangdong
Brand Name: TOPLED
Certification: CE, ROHS, FCC, ISO9001, ISO14001
Model Number: Indoor P4.81
Document: Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden case, flight case, honeycomb.
Delivery Time: 15-20 Working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 SQM/Month
Get Best Price Contact Now

Detail Information

Brightness: 2200cd/sqm Display Function: Video
Scan Mode: 1/13 Module Size: 250*250mm
Cabinet Size: 500*500mm Pixels: 4.81mm
Highlight:

stage led display

,

led stage curtain screen

Product Description



P4.81 Rental Stage Backdrop Video Wall LED Display Screen display



Characteristic



1. Standard dimension module size 250mm*250mm, cabinet size 500mm*500mm, compatible model PH3.91/PH4.81/PH5.95 and other pixel pitch standard size cabinet design.

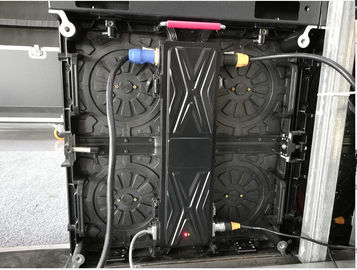

2. High-precision die-cast aluminum cabinet, seamless unit box,perfect solution for both outdoor using

3. Light and strong cabinet design with quick locate handle lock can be quickly and easily assembled in various ways, it can be used in a variety of occasions, to meet different customer requirement for a variety of applications.

4. 140-degree viewing angle assure the screen has wider view area, meet various rent environment and requirements.

5. Sophisticated materials for led lamp and IC, uniform screen, real and natural color, high grey scale, high refresh rate to ensure the amazing photographic effects.





Parameters

Pixel Pitch(mm) 4.81
Physical Density 43,264
LED Configuration 1RGB
LED type SMD2727
Module Size 250×250
Module Resolution 52×52
Module Power Consumption 40W
Driving Mode Constant Current IC
Scanning Mode 1/13
Horizontal Viewing Angle 140
Vertical Viewing Angle 140
Brightness 1000-5500
Grey Scale 16BIT
Refresh Rate >3840
Cabinet Resolution 104×104
Cabinet Max Consumption 260
Cabinet Average Power Consumption 80
Cabinet Size 500×500
Cabinet Weight(kg) 7.85KG
Cabinet Thickness 85mm
Cabinet Material Die-Casting Aluminum
Color >16.7
Input Voltage AC 110V~220V +/-10%
Frame Frequency 50-60
Protection Level IP65
Working Temperature(℃) -40° -+65°
Storage Humidity Range(RH) 10%~90%
Life Span(H)

100,000 hours

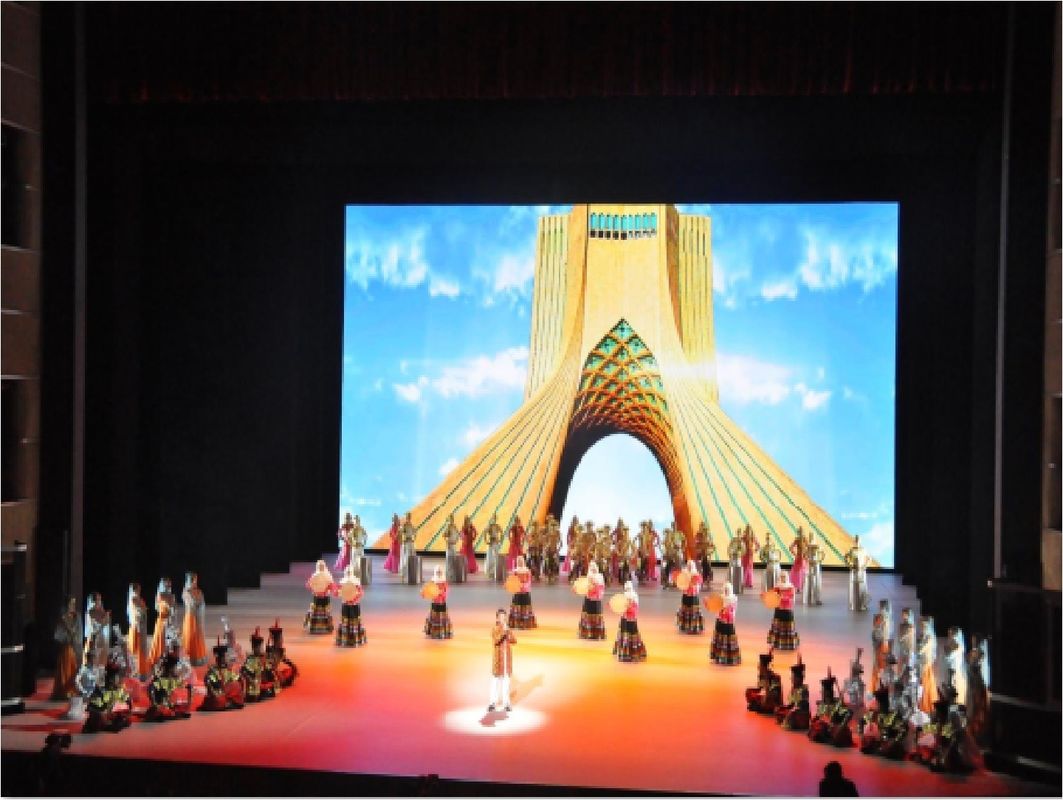

Project Case

P4.81 Rental Stage LED Screen 2200cd/sqm High Brightness For Advertising 0





Application

The product has the ability to play monitor videos and graphic information in real time. So it can be mainly used in outdoor display, out stage, makeshift arena etc.



Attention

In order to offer you a suitable solution, Please state general info about your project.

1. Pixel pitch or view distance you need.

2. Dimension

3. Location of installation. ( eg, on poles, on wall of building, etc)

4. Purpose. ( what are you going to do with the LED Screen)
