Full Color Ultra Thin Indoor Led Display Board P1.875 Nationstar / Kinglight Led Chip
Product Details:
| Place of Origin: | China (Mainland) |
| Brand Name: | TOPLED |
| Certification: | CE FCC ROHS |
| Model Number: | P1.875 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Fight case or Standard wooden box |
| Delivery Time: | 10-15 working days after got deposit |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Name: | 480mmx480mm Indoor Full Color Rental Ultra Thin LED Display 1000nits 1R1G1B | Usage: | Indoor |
|---|---|---|---|
| Cabinet Size: | 480*480mm | Material: | Die Casting Aluminum |
| Module Size: | 240*240mm | Brightness: | 1000nits |
| Cabinet Weight: | 6kg | Certification: | CE,FCC,RoHS |
| Highlight: | stage led display,led stage curtain screen |
||
Product Description
480mmx480mm Indoor Full Color Rental Ultra Thin LED Display 1000nits 1R1G1B
Specification:
| Pixel Pitch | 1.875mm |
| Pixel Density | 284444dots/sq.m |
| Color Configuration | 1R1G1B |
| LED Package | SMD1515 |
| Display | Full Color |
| Module Size | 240mmx 240mm |
| Module Resolution | 128dots x 128dots |
| Drive Duty | 1/32 Scan |
| Standard Cabinet Size | 480*480mm |
| Cabinet Weight | 6kg |
| Led Chip | Nationstar / Kinglight |
| Power | DC 5V, AC110V-220V |
| Brightness | ≥1000 cd/sqm |
| Viewing Distance | 1.875M |
| Viewing Angle | H: 140°; V:140° |
| Refresh Rate | >3840HZ, adjustable by software |
| Power Input | AC110V/ 220V ±10%, 50HZ |
| Max Power Consumption | 100W/cabinet |
| Ave. Power Consumption | 30W/cabinet |
| Temperature | -40℃~+60℃ |
| MTBF | >10,000 Hours |
| Life Span | >100,000 Hours |
| Operating Humidity | 10%~90% RH |
| Control Method | Synchronous, Asynchronous, 3G,WIFI,USB |
| Control PC | With DVI Graphic card |
| Certificate | CE, RoHS,ISO9001 |
videos and texts
Light

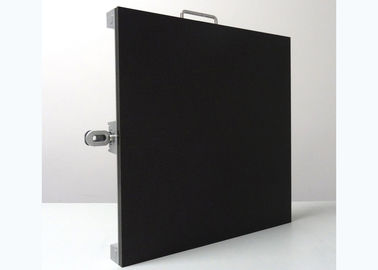

Cabinet size 480mm*480mm, only6.0kg comparing to more than 9 kg of common cabinet. Saving time and labor cost.
Thin:
It is die-casting aluminum cabinet, thus it is featured by high strength, toughness, precision and it is hard to be deformed.
Fast:

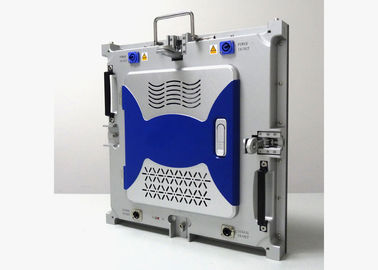

There is fast locking device in four corners. It takes only 10 seconds to assemble one cabinet by pushing the handle 90 degree. It is fast and precise assembling.
Easy:
The cabinet is modular designed, each cabinet of the screen can be easily dismantled and assembled(replaced).
Low:
Excellent heat dissipation design, no fans and air conditioning are required. Low noise, light weight, low cost for transportation and assembling without tools with low cost for assembling.
