HD Outdoor Stage LED Screen 1/16 Scan Driving 5000cd Brightness For Events
Product Details:
| Place of Origin: | China (Mainland) |
| Brand Name: | TOPLED |
| Certification: | CE FCC ROHS |
| Model Number: | P3.91 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Fight case or Standard wooden box |
| Delivery Time: | 10-15 working days after got deposit |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Name: | Pixel Pitch 3.9mm HD Outdoor Stage LED Screen 1/16 Scan Driving For Events | Usage: | Outdoor |
|---|---|---|---|
| Color: | Full Color | Cabinet Size: | 500*500mm |
| Module Size: | 250*250mm | Certification: | CE,FCC,RoHS |
| Brightness: | 5000cd | Material: | Die Casting Aluminum |
| Highlight: | led backdrop screen,stage led display |
||
Product Description

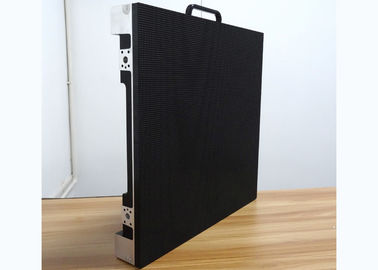

Pixel Pitch 3.9mm HD Outdoor Stage LED Screen 1/16 Scan Driving For Events
Specification:
| Pixel Pitch | 3.91mm |
| Pixel Density | 65536dots/sq.m |
| Color Configuration | 1R1G1B |
| LED Package | SMD1919 |
| Display | Full Color |

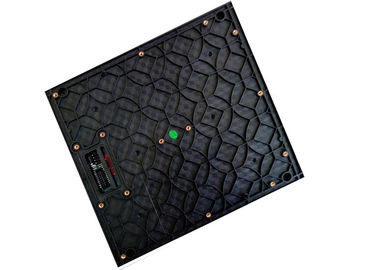

| Module Size | 250mm x 250mm |
| Module Resolution | 64dots x 64dots |
| Drive Duty | 1/16 Scan |
| Standard Cabinet Size | 500*500mm |
| Cabinet Weight | 7kg |
| Led Chip | Nationstar / Kinglight |
| Power | DC 5V, AC110V-220V |
| Brightness | ≥5000 cd/sqm |
| Viewing Distance | 3M |
| Viewing Angle | H: 140°; V:140° |
| Refresh Rate | >3840HZ, adjustable by software |
| Power Input | AC110V/ 220V ±10%, 50HZ |
| Max Power Consumption | 260W/cabinet |
| Ave. Power Consumption | 80W/cabinet |
| Temperature | -40℃~+65℃ |
| MTBF | >10,000 Hours |
| Life Span | >100,000 Hours |
| Waterproof Level | IP65 |
| Operating Humidity | 10%~90% RH |
| Control Method | Synchronous |
| Control PC | With DVI Graphic card |
| Operating System | Win 98, Win2000, XP, Win7, Win8 |
| Certificate | CE, RoHS,ISO9001 |
FAQ:
1. Diversified products :
Varieties of models for outdoor/indoor LED display screens,and customized cabinets available,meet all requirements and win more profits for customers.
2. Experienced&Professional:
13 years manufacturing experience on LED displays, professional workmanship & design.
3. Best raw materials:
High quality,high brightness and long life span.
4. Competitive price:
100% factory price,competitive and reasonable price.
5. Strict quality control:
100% testing before shipment , make sure our quality before delivery.
6. Quality gurantee:
All our LED display screens is more than 100,000 hours life span.
7. Long warranty:
Two year warranty, any quality problem during warranty time will be handled .

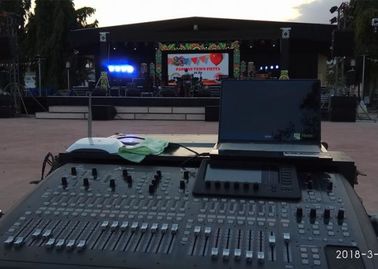

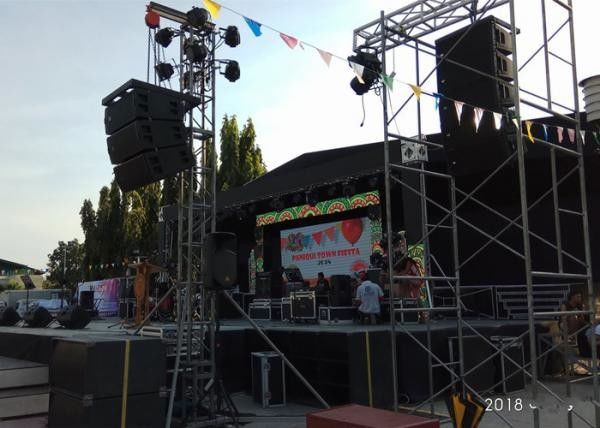

Project images:
