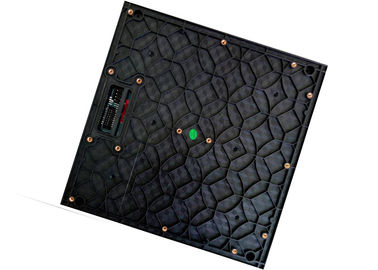

Exterior Waterproof Stage LED Screen 500*500mm Cabinet Size Easy Installation
Product Details:
| Place of Origin: | China (Mainland) |
| Brand Name: | TOPLED |
| Certification: | CE FCC ROHS |
| Model Number: | P4.81 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Fight case or Standard wooden box |
| Delivery Time: | 10-15 working days after got deposit |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Name: | Stage Performance Exterior Waterproof Rental LED Screen For Outdoor Events | Usage: | Outdoor Stage |
|---|---|---|---|
| Color: | Full Color | Cabinet Size: | 500*500mm |
| Module Size: | 250*250mm | Scan: | 13scan |
| Warranty: | 2years | Material: | Die Casting Aluminum |
| Highlight: | led backdrop screen,stage led display |
||
Product Description
Stage Performance Exterior Waterproof Rental LED Screen For Outdoor Events
Specification:
| Pixel Pitch | 4.81mm |
| Pixel Density | 43264dots/sq.m |
| Color Configuration | 1R1G1B |
| LED Package | SMD1919 |
| Display | Full Color |
| Module Size | 250mm x 250mm |
| Module Resolution | 52dots x 52dots |
| Drive Duty | 1/13 Scan |
| Standard Cabinet Size | 500*500mm |
| Cabinet Weight | 7kg |
| Led Chip | Nationstar / Kinglight |
| Power | DC 5V, AC110V-220V |
| Brightness | ≥5000 cd/sqm |
| Viewing Distance | 4M |
| Viewing Angle | H: 140°; V:140° |
| Refresh Rate | >3840HZ, adjustable by software |
| Power Input | AC110V/ 220V ±10%, 50HZ |
| Max Power Consumption | 260W/cabinet |
| Ave. Power Consumption | 80W/cabinet |
| Temperature | -40℃~+65℃ |
| MTBF | >10,000 Hours |
| Life Span | >100,000 Hours |
| Waterproof Level | IP65 |
| Operating Humidity | 10%~90% RH |
| Control Method | Synchronous |
| Control PC | With DVI Graphic card |
| Operating System | Win 98, Win2000, XP, Win7, Win8 |
| Certificate | CE, RoHS,ISO9001 |
Features:
1. Wide viewing angle, high contrast (3000: 1), high brightness (adjustable), high intensity (14bit gradation processing), high refresh (1920HZ refresh rate ;), softer image, display lifelike images to meet the high-speed motion picture display
2. Low brightness with high grayscale:adjustable screen brightness and height to meet different requirements on brightness in different indoor place; Beautiful picture; perfect screen performance.
3. Light LED panel with smaller space and easy for transportation and assembly.
4. Professional video splicing system; supporting a variety of processor synchronization signal fidelity display.
5. Sign between panels, tool-free for fast and convenient assembly.
6. Ingress protection being IP65, weather proof and dust proof.
7. High brightness uniformity and color uniformity(≥95%)
8. Super thin and light with die-casting aluminum cabinet design.

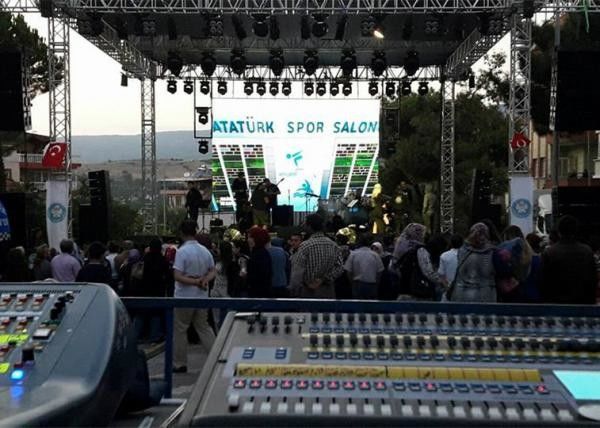

Application:
