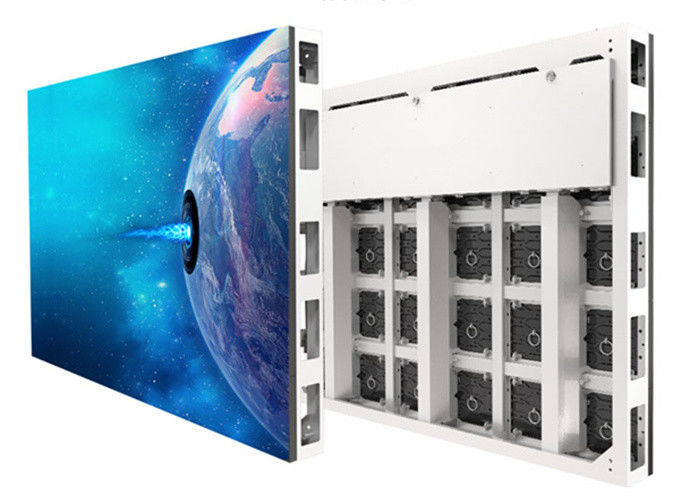

Double Sides P9.52 Outdoor Front Service LED Display 7400 Nits For Road Side
Product Details:
| Place of Origin: | Shenzhen China |
| Brand Name: | Lecede |
| Certification: | CE ROHS FCC UL ETL |
| Model Number: | C9.5 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case packing, flight case packing , honeycomb case |
| Delivery Time: | 15~30 days after deposit |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 ㎡/month |
|
Detail Information |
|||
| Product Name: | High Brightness Front Service LED Display P9.5mm 1ft X 1ft Module | Pixel Pitch (MM): | 9.5 |
|---|---|---|---|
| Usage: | Outdoor Front Service | Pixel: | 11022 Dots/㎡ |
| Module Size(W*H): | 304.8x 304.8 Mm (1x1 Ft) | LED Lamp: | SMD 2727 Lamp |
| Brightness: | 7400 Nits | Refresh Rate: | 1920 Hz |
| Highlight: | smd led display,led rental display |
||
Product Description
Double Sides P9.52 Outdoor Front Service LED Display For Road Side
Product Features
1. Innovative technology, which leads the whole industry trend. With black body SMD, both brightness
and contrast can be guaranteed at the same time
2. Front and rear service makes maintenance quick and easy. High efficient Led lamps save energy
maximum and achieve environment protection accordingly.
3. With high gray scale, product can deliver excellent image colors. It’s an ideal solution for both indoor
and outdoor advertising applications
4. Special PCB design with lower current to save energy more than 30%. Selected small tolerance
wavelength led lamps ensure high uniformity
SPECIFICATION OF C9.52 Outdoor Front Service LED Display
| Model | C9.52 |
| Pixel pitch(mm) | 9.52mm |
| LED Configuration | SMD 2727 lamp |
| Module size(mm) | 304.8 x 304.8mm |
| Module weight(kg) | 1.2 |
| Cabinet size(mm) | Customized |
| Pixel density(dots/㎡) | 11022 dots |
| Flatness error(mm) | ≤0.2 |
| Viewing angle | 160°/140°(Horizontal/Vertical) |
| Brightness(cd/㎡) | 7400 nits |
| Color temperature(K) | 5000~9500 (Adjustable) |
| Contrast | 5000:1 |
| Repetition frequency | 50/60Hz |
| Refresh frequency(Hz) | ≥1920 Hz |
| Gray scale | 16bit |
| Ave. power(W/㎡) | 950 |
| Max power(W/㎡) | 470 |
| Working temp./humidity | -10~40℃/10%~80%RH |
| Storing temp./humidity | -20~60℃/10%~85%RH |
| Cabinet material | Aluminum or Iron |
| Maintenance | Front and Rear maintenance |
| Protection | IP65 |
| Driving mode | Constant current driver |
| Scanning | 1/2 S |
| Power requirements | AC90~264V |
| Life time(hrs) | 100,000 |
Advantages OF C9.52 Outdoor Front Service LED Display
1. General Module Size: C9.52 is with module size of 304.8x304.8 mm (1ft*1ft). Different pixel pitch
models share same module size, which offers more choices for each project. All the modules are with
same front maintenance design
2. Integrated Intelligent Control Solution: C9.52 sign can be integrated with light sensor, temperature
sensor and asynchronous control card which enable brightness adjustment and wireless control. We can
publish advertising program with smartphone via 3G or 4G or wifi. No need to use software on computer,
great advantage for commercial advertising. If there is a need, the wire control (sending card and
receiving card) can be done as well
3. Support Multiple Installations: C9.52 is the best option for outdoor commercial advertising. The
versatile sign solution can be used to wall mounted installation, suspension installation and wall
embedded installation and so on. Can be applied in retail stores, small shops, gas stations, bus stations,
train stations etc. Very easy to suspend and install. In addition, smaller screen size is easier to get
installation permit and more possible business
4. Customized Sign Size: The size of C9.52 can be changed with different projects. The standard size is
3x3ft which can be one independent sign screen or as one big cabinet of a giant screen project. What is
more, the screen size can be varied.to module size. Bring you more choices to each project
