Outside IP65 SMD LED Display , 6.35 / 9.525mm LED Advertising Signs Highly Bright
Product Details:
| Place of Origin: | Shenzhen China |
| Brand Name: | Lecede |
| Certification: | CE ROHS FCC UL ETL |
| Model Number: | C6.35 / 9.525 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case packing, flight case packing , honeycomb case |
| Delivery Time: | 15~30 days after deposit |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 ㎡/month |
|
Detail Information |
|||
| Product Name: | Outside IP65 SMD Front Service LED Display , LED Advertising Signs High Brightness | Pixel Pitch (MM): | 6.35 / 9.525 Mm |
|---|---|---|---|
| Usage: | Outdoor Front Service | Pixel: | 24800 / 11022 Dots/㎡ |
| Module Size(W*H): | 304.8x 304.8 Mm (1ftx1ft) | LED Lamp: | SMD 2727 Lamp |
| Brightness: | 7000 - 7500 Nits | Refresh Rate: | 1920 Hz |
| Highlight: | smd led display,smd led display screen |
||
Product Description
Outside IP65 SMD Front Service LED Display , LED Advertising Signs Very
Bright
Product Features
1. With high gray scale, product can deliver excellent image colors. It’s an ideal solution for both indoor
and outdoor advertising applications
2. IP65 SMD 3IN1 outdoor LED module including the data and power cables, waterproof rubber ring
3. Good quality led chip with low led attenuation, best color uniformity, low default rate and long lifespan
SPECIFICATION OF C10 Outdoor Front Service LED Display
| Model | C6.35 | C9.525 |
| Pixel pitch(mm) | 6.35mm | 6.9.525mm |
| LED lamp | SMD 2727 | SMD 2727 |
| Module size(mm) | 304.8x 304.8 mm (1ftx1ft) | 304.8x 304.8 mm (1ftx1ft) |
| Module weight(kg) | 1.2kg | 1.2kg |
| Cabinet size(mm) | 914.4x914.4mm (3ftx3ft) | 914.4x914.4mm (3ftx3ft) |
| Pixel density(dots/㎡) | 24800 dots/㎡ | 11022 dots/㎡ |
| Flatness error(mm) | ≤0.2 | ≤0.2 |
| Viewing angle | 140°/140°(Horizontal/Vertical) | 140°/140°(Horizontal/Vertical) |
| Brightness(cd/㎡) | 7000 nits | 7500 nits |
| Color temperature(K) | 5000~9500 (Adjustable) | 5000~9500 (Adjustable) |
| Contrast | 5000:1 | 5000:1 |
| Repetition frequency | 50/60Hz | 50/60Hz |
| Refresh frequency(Hz) | ≥1920 Hz | ≥1920 Hz |
| Gray scale | 16bit | 16bit |
| Ave. power(W/㎡) | 980 | 1000 |
| Max power(W/㎡) | 500 | 500 |
| Working temp./humidity | -10~40℃/10%~80%RH | -10~40℃/10%~80%RH |
| Storing temp./humidity | -20~60℃/10%~85%RH | -20~60℃/10%~85%RH |
| Cabinet material | Aluminum or Iron cabinet | Aluminum or Iron cabinet |
| Maintenance | Front and Rear maintenance | Front and Rear maintenance |
| Protection (Front/rear) | IP65/IP65 | IP65/IP65 |
| Driving mode | Constant current driver | Constant current driver |
| Scanning | 6S | 2S |
| Power requirements | AC90~264V | AC90~264V |
| Life time(hrs) | 100,000 | 100,000 |
Advantages OF C Series Outdoor Front Service LED Display
1. General Module Size: C Series is with module size of 3320x320 mm. Different pixel pitch models
share same module size, which offers more choices for each project. All the modules are with same front
maintenance design

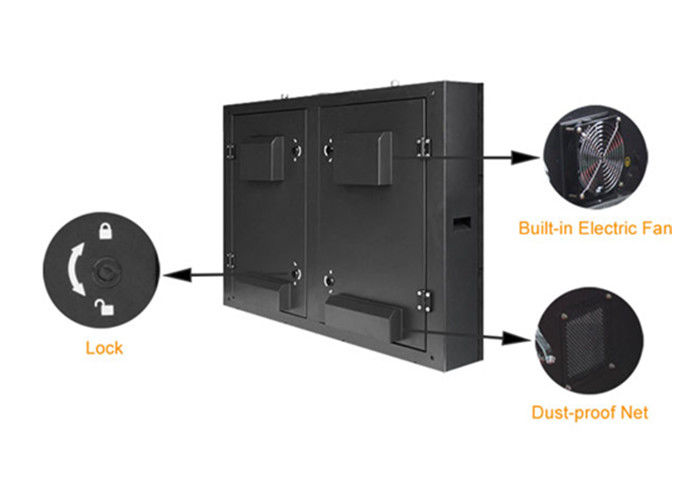

2. Front Service Design: Unlike traditional front service design with hydraulic pipes, which cost much on
project and with lower IP rating due to the conjunction of structure. C Series LED Sign is like normal
cabinet design, but bigger size. The IP rating can reach to IP65. All the modules, cards and power supply
can be maintained from front. The whole sign can be attached to the wall and no need maintenance
space at rear

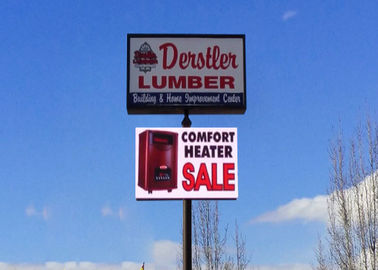

3. Convenient Sign Design, Easy to Install: C Series LED Sign is very easy to install, not picked on
installation environment. Most structure frame is integrated on the sign, no complicated steel structure
needed, just fix the sign to the pole or to the wall. Extremely save installation time and labor cost
4. Customized Sign Size: The size of C Series can be changed with different projects. The standard size
is 3x3ft which can be one independent sign screen or as one big cabinet of a giant screen project. What
is more, the screen size can be varied.to module size. Bring you more choices to each project
