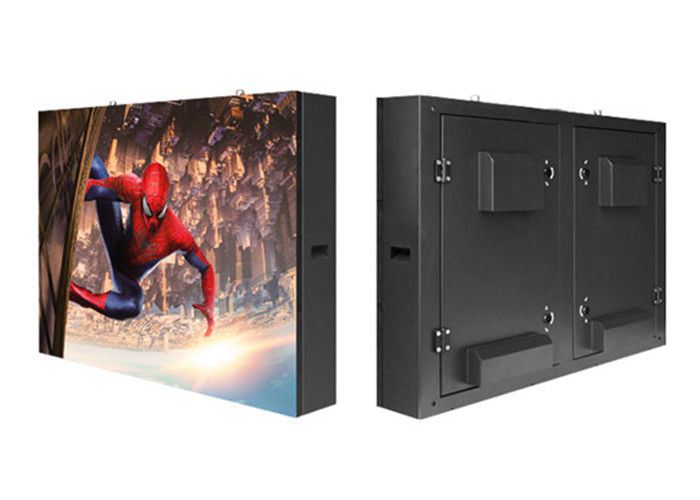

8mm Front Service LED Display Outdoor Intelligent Solution SMD 2727 LED Lamp
Product Details:
| Place of Origin: | Shenzhen China |
| Brand Name: | Lecede |
| Certification: | CE ROHS FCC UL ETL |
| Model Number: | C8 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case packing, flight case packing , honeycomb case |
| Delivery Time: | 15~30 days after deposit |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 ㎡/month |
|
Detail Information |
|||
| Product Name: | 8mm High Brightness Front Service LED Display Outdoor Intelligent Solution | Pixel Pitch (MM): | 8 |
|---|---|---|---|
| Usage: | Outdoor Front Service | Pixel: | 15625 Dots/㎡ |
| Module Size(W*H): | 304.8x 304.8 Mm (1x1 Ft) | LED Lamp: | SMD 2727 |
| Brightness: | 7300 Nits | Refresh Rate: | 1920 Hz |
| Highlight: | smd led display,smd led display screen |
||
Product Description
8mm High Brightness Front Service LED Display Outdoor Intelligent Solution
Product Features
1. Innovative technology, which leads the whole industry trend. With black body SMD, both brightness
and contrast can be guaranteed at the same time
2. IP65 SMD 3IN1 outdoor LED module including the data and power cables, waterproof rubber ring
3. Replacing malfunction modules is easier and faster. which just need less than one minute to take out
from the panel, realizing labor and maintenance cost saving
SPECIFICATION OF C8 Outdoor Front Service LED Display
| Model | C8 |
| Pixel pitch(mm) | 8mm |
| LED Configuration | SMD 2727 |
| Module size(mm) | 304.8 x 304.8mm |
| Module weight(kg) | 1.0 kg |
| Cabinet size(mm) | Customized |
| Pixel density(dots/㎡) | 15625 |
| Flatness error(mm) | ≤0.2 |
| Viewing angle | 140°/140°(Horizontal/Vertical) |
| Brightness(cd/㎡) | 7300 nits |
| Color temperature(K) | 5000~9500 (Adjustable) |
| Contrast | 5000:1 |
| Repetition frequency | 50/60Hz |
| Refresh frequency(Hz) | ≥1920 Hz |
| Gray scale | 16bit |
| Ave. power(W/㎡) | 980 |
| Max power(W/㎡) | 490 |
| Working temp./humidity | -10~40℃/10%~80%RH |
| Storing temp./humidity | -20~60℃/10%~85%RH |
| Cabinet material | Aluminum / Iron |
| Maintenance | Front / Rear maintenance |
| Protection | IP65/IP65 |
| Driving mode | Constant current driver |
| Scanning | 3 S |
| Power requirements | AC90~264V |
| Life time(hrs) | 100,000 |
Advantages OF C8 Outdoor Front Service LED Display
1. General Module Size: C8 is with module size of 304.8x304.8 mm (1ft*1ft). Different pixel pitch models
share same module size, which offers more choices for each project. All the modules are with same front
maintenance design
2. Fast Module Assembling and Maintenance: No need a lot of screw works, just one wrench to loosen or
fasten two screws, then we can take out or assemble back.one module within 5 seconds. No concerns on
screw falling. Greatly ease the maintenance work and save much time
3. Front Service Design: Unlike traditional front service design with hydraulic pipes, which cost much on
project and with lower IP rating due to the conjunction of structure. C8 LED Sign is like normal cabinet
design, but bigger size. The IP rating can reach to IP65. All the modules, cards and power supply can be
maintained from front. The whole sign can be attached to the wall and no need maintenance space at
rear.
