1FT * 1FT P10 SMD Front Service LED Display RGB Brightness 7500 Nits
Product Details:
| Place of Origin: | Shenzhen China |
| Brand Name: | Lecede |
| Certification: | CE ROHS FCC UL ETL |
| Model Number: | C10 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case packing, flight case packing , honeycomb case |
| Delivery Time: | 15~30 days after deposit |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 ㎡/month |
|
Detail Information |
|||
| Product Name: | 1FT X 1FT P10 Smd Front Service Led Display RGB Brightness 7500 Nits | Pixel Pitch: | 10MM |
|---|---|---|---|
| Usage: | Outdoor Front Service | Pixel: | 10000 Dots/sqm |
| Module Size(W*H): | 304.8x 304.8 Mm | LED Lamp: | SMD 2727 |
| Brightness: | 7500 Nits | Refresh Rate: | 1920 Hz |
| Highlight: | smd led display,led rental display |
||
Product Description
1FT X 1FT P10 Smd Front Service Led Display RGB Brightness 7500 Nits
Product Features
1. Innovative technology, which leads the whole industry trend. With black body SMD, both brightness
and contrast can be guaranteed at the same time
2. Front and rear service makes maintenance quick and easy. High efficient Led lamps save energy
maximum and achieve environment protection accordingly
3. High strength module suite ensures good heat dissipation which allows outdoor daytime use and
improves contrast without sacrificing viewing angle, and guarantees stability of screen
SPECIFICATION OF C10 Outdoor Front Service LED Display
| Model | C10 |
| Pixel pitch(mm) | 10 |
| Configuration | SMD 2727 |
| Module dimension(mm) | 304.8 x 304.8mm |
| Module weight(kg) | 1 kg |
| Cabinet dimension(mm) | 914.4x 914.4x 120mm |
| Pixel density(dots/㎡) | 10000 dots |
| Flatness error(mm) | ≤0.2 |
| Viewing angle | 140°/140°(Horizontal/Vertical) |
| Brightness(cd/㎡) | 7500 |
| Color temperature(K) | 5000~9500 (Adjustable) |
| Contrast | 5000:1 |
| Repetition frequency | 50/60Hz |
| Refresh frequency(Hz) | ≥1920 |
| Gray scale | 65536 |
| Ave. power(W/㎡) | 980 |
| Max power(W/㎡) | 490 |
| Working temp./humidity | -10~40℃/10%~80%RH |
| Storing temp./humidity | -20~60℃/10%~85%RH |
| Cabinet material | Aluminum / Iron |
| Maintenance | Front / Rear maintenance |
| Protection | IP65/IP65 |
| Driving mode | Constant current driver |
| Scanning | 1/2 S |
| Power requirements | AC90~264V, 47~63Hz |
| Life time(hrs) | 100,000 |
Advantages OF C10 Outdoor Front Service LED Display
1. Front Service LED Display module with 1ft x 1ft. Specially developed for dual maintenance on both
front and back sides of the LED Display panels with limited space superior solution in application for
outdoor branding and advertising.

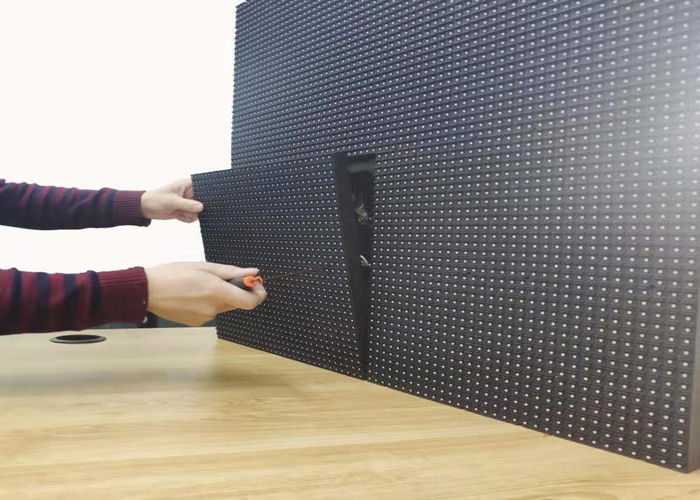

2. Dual-maintenance, from both the front side and the rear side. People usually use its front maintenance
function. Easy maintenance, easy to take the modules with a hexagonal wrench. No screws, easier to
take the modules and mount the modules on the cabinet.
3. SMD pixel pitch, suitable for both outdoor and indoor LED screens. New plastic cover with new mold,
smaller module gaps and better screen flatness. High quality materials, Nationstar SMD2727 LED, MBI
driver IC, etc.
